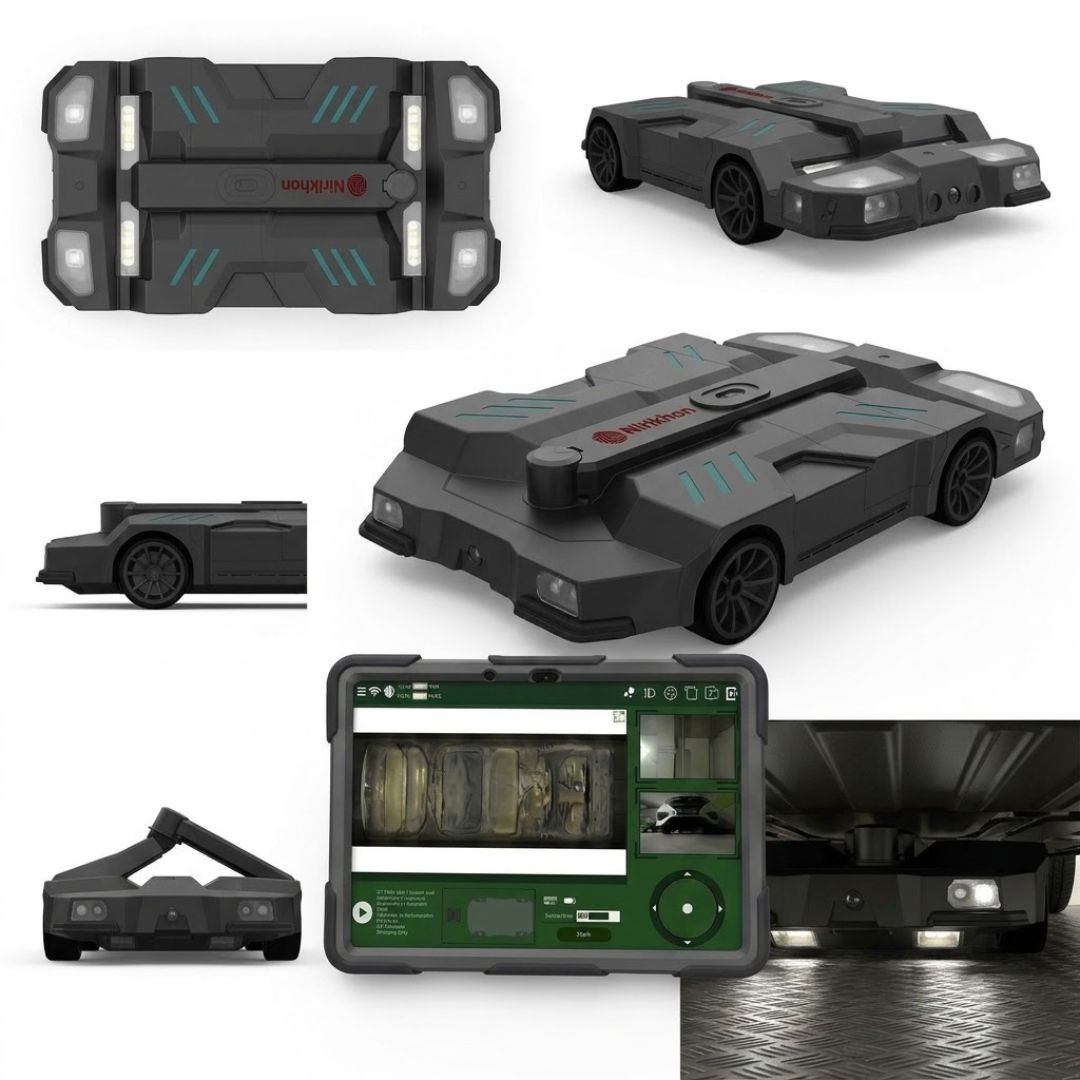

The Zoan Under Vehicle Inspection Robot by NIRIKHON (Model ZA-UABOT-I) delivers rapid chassis screening with 2048px high-resolution imaging and instant ≤1.0s startup. A 50m wireless control range enables safe standoff inspection, while 120°/s in-situ turning and 0.1–1.2m/s mobility ensure agile maneuvering under any vehicle. Backed by ≥6 hours of continuous runtime and a 1-year warranty — built for mission-ready checkpoint operations.
Engineered at a height of ≤115mm within a ≤610x380x115mm footprint, this chassis is built to slide beneath low-clearance vehicles that would otherwise block inspection access. This compact structural design is what allows the unit to physically reach the confined undercarriage zones standard inspection methods cannot access.
The drive system delivers a variable speed range of 0.1 to 1.2 m/s alongside rapid 120°/s in-situ turning, enabling controlled navigation through the tight, obstacle-dense space beneath a vehicle. This mobility system gives operators the agility to reposition instantly without needing to reverse or maneuver externally.
The onboard processing system brings the unit to full operational readiness in ≤1.0 seconds from activation, eliminating startup delay at active checkpoints. This near-instant boot capability supports rapid, back-to-back inspection cycles during high-throughput screening operations.
This imaging assembly captures the vehicle undercarriage at 2048px resolution, delivering the visual clarity needed to identify concealed objects, tampering, or anomalies in dim, obstructed spaces beneath a vehicle. This sensor is the unit's core detection instrument — turning a hidden chassis into a fully visible inspection surface.
This wireless module maintains a stable control link across a 50-meter operational range, allowing the operator to direct the unit and receive live video feed from a safe standoff distance. This module is what transforms the robot from a manually handled tool into a remotely operated inspection asset.
The onboard power system sustains a minimum of 6 hours of continuous operation per charge, supporting extended checkpoint shifts without requiring mid-operation recharging. This power reserve is what keeps the unit mission-ready across a full operational deployment window.
Streams live 2048px high-definition video from the robot's undercarriage camera directly to the operator console during active inspection.
The unit maintains a rated wireless control range of up to 50 meters under standard operating conditions. Procurement evaluators should note that specific electromagnetic interference resistance data beyond this range specification would require direct verification with the manufacturer for site-specific checkpoint environments.
Yes. The unit's chassis is engineered at a height of ≤115mm within a ≤610x380x115mm footprint, enabling access beneath low-clearance vehicle types that restrict standard inspection methods. This compact profile is central to the unit's ability to reach confined undercarriage zones across varied vehicle designs.
The unit is rated for in-situ turning speeds of up to 120°/s, combined with a variable movement speed range of 0.1 to 1.2 m/s. This combination allows operators to execute rapid directional changes while maintaining precise control, supporting maneuverability through the structurally complex space beneath a vehicle chassis.
The unit is rated for a minimum of 6 hours of continuous operation per charge. This runtime is designed to support extended checkpoint shifts without requiring mid-operation recharging, though procurement teams should factor in charge-cycle planning for consecutive multi-shift deployments.
Download the complete product brochure as a PDF.
